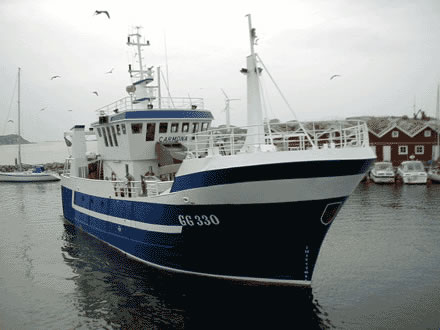

F/V Carmona building nr:120
Photos
General arrangement plan

Technical Data F/V Carmona:
L.o.a: 26,79 m
L.p.p: 21,70 m
Breadth: 8,27 m
Draft: 4,70 m (max).
Gross Tonnage: 332 MT
Service speed: 11 Knots.

Bridge equipment:
Radar 1: Furuno FR 2100
Radar 2: Anritzu RA 770
Autopilot: Robertson AP-45
Echo sounder 1: Simrad EQ-55
Echo sounder 2: Skipper ES 1025
Echo sounder 3: KODEN SVS 8842
VHF (3): Sailor RT2044, RT144, Shipmate RS5800
SSB: Furuno
Gyrocompass: RGC 50
Sonar: Furuno CSH-22F 20" 24 hz
Catch sensor, High sensor, Distance sensor: Simrad ITI
GPS 1: Shipmate
GPS 2: Shipmate
DGPS: Shipmat
Plotter: Shipmate RS 2800

Engine equipment:
Main Engine: Wärtsilä 6L20 (990 kW)
Gear: Finnöy G50
Propeller: Bergs Prupolsion high skrew 4 blade 2300 mm
Auxiliary engine: Volvo Penta TAMD 122 (300 kVA)
Shaft Genarator: Stanford (300 kVA)
Steering gear Tenfjord
Bow thruster: Hundested SFT 4 (160 BHP)

Cargohandling equipment:
RSW-Tanks 3 RSW-tanks with stainless steel garnishing (total 160 cbm)
Cargohold with stainless steel garnishing (total 110 cbm)
RSW cooling system: Aquaterm (360000 kcal/h)
Discharging system: MMC vacuum system

Deck equipment:
Crane fore / aft: SWL 1,5 t / SWL 1,5 t
Anchor / Mooring winch fore: 1 x 12 t
Trawl winch: 3 Hägglunds lidan 22 t
Net drum: 1 x 25 t, 1 x 12 t
Sond winch: 1400 m cabel
Powerpack (electric / haudralic): Situated in haudralicroom aft (total 300 kW)
Fish pump: Fishpump RAPP incl hose drum.
